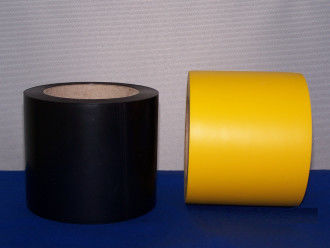

Petrolatum Self Adhesive PVC Electrical Insulation Tape For Pipe Wrapping

Product Details

Place of Origin: China

Brand Name: CNPETRO

Certification: ISO

Model Number: PVC

Payment & Shipping Terms

Minimum Order Quantity: 500 Rolls

Packaging Details: 360*360*320mm

Delivery Time: 5 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20000 Rolls/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                Petrolatum self adhesive pvc electrical insulation tape, Wrapping self adhesive pvc electrical insulation tape, Petrolatum pipe wrapping tape


Materials:	PVC	Color:	Black
Length:	30M,10M	Width:	50mm,100mm,150mm
Elongation:	250%	Adhesive:	2.0N/cm
Fuction:	Mechanical Protection

Materials:	PVC
Color:	Black
Length:	30M,10M
Width:	50mm,100mm,150mm
Elongation:	250%
Adhesive:	2.0N/cm
Fuction:	Mechanical Protection

Product Description

PVC outer wrap tape

Description

PVC sheeting coated one side with a rubber resin pressure sensitive adhesive.

As an outer wrap for petrolatum tapes,visco-elastic tapes,mastic surface,

providing outer mechanical protection and insulation from soil.

PVC pipe wrapping tape is a high-quality tape that is 6 mils,10 mil and 20 mil thick and has a PVC backing. It is designed to be used in all weather conditions and can withstand temperatures ranging from 55 to 176 °F (48 to 80 °C). This tape has a strong adhesive that provides resistance to corrosion, mechanical protection, and impact . It is commonly used on metal piping systems, conduits, and fittings, whether they are located above or below the ground

Petrolatum Self Adhesive PVC Electrical Insulation Tape For Pipe Wrapping 0

Backing	Soft permanently elastic strip
Form	Available in a roll form
Adhesive	High levels of surface tack
Temperature	Performs at a wide range of temperatures
outer	Achieve a complete bond to the inner layer tape

Advantage

Easy application.

Stable and reliable.

Good comformability.

Non-hardening in cold weather

Good impact resistance

Application

After Applying petrolatum tapes. Then, by hand application, wrap the PVC tape ,overlap 55%.

Apply enough tension .

Petrolatum Self Adhesive PVC Electrical Insulation Tape For Pipe Wrapping 1

Technical property

Color	Black or Yellow
Thickness	0.5 mm --
Tensile Strength	≥ 16 MPa
Adhesion (To Self)	2.0 N/CM
Adhesion (To Steel)	2.0 N/CM
Elongation at Break	≥250%
Breakdown Voltage (double layer)	≥20KV
Application Temperature	-5 to +55oC
Service Temperature	-50 to +90oC
Roll Length	30 m
Roll Width	50,100,150,200mm

Petrolatum Self Adhesive PVC Electrical Insulation Tape For Pipe Wrapping 3
