PileCoat 2000F HDPE Jacket for PileCoat Series – Splash and Tide Zone Protection

Name: PileCoat 2000F HDPE Jacket for PileCoat Series – Splash and Tide Zone Protection
Brand: TIANJIN CNPETRO HITECH CO.,LTD
SKU: CNPetro
Price: 5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: PileCoat 2000F HDPE Jacket

Certification: AN ISO 9001:2015,ISO45001:2018 & ISO14001:2015 CERTIFIED COMPANY

Model Number: CNPetro

Payment & Shipping Terms

Minimum Order Quantity: 1 Roll

Price: 5

Packaging Details: 18 square meter per box

Delivery Time: 7-14 days

Payment Terms: T/T

Supply Ability: 2000 Rolls Each Day

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Thickness:	2.2 Mm	Standard:	AWWA C 217
Manager System:	ISO 9001:2015,ISO45001:2018 & ISO14001:2015	System:	Petrolatum Mastic+Petrolatum Paste+Petrolatum Tape+Outer Wrapping Tape
Usage:	For Corrosion Protection	Chemical Resistance:	Yes
Temperature Resistance:	75 ℃	Dropping Point:	75 ℃

Thickness:	2.2 Mm
Standard:	AWWA C 217
Manager System:	ISO 9001:2015,ISO45001:2018 & ISO14001:2015
System:	Petrolatum Mastic+Petrolatum Paste+Petrolatum Tape+Outer Wrapping Tape
Usage:	For Corrosion Protection
Chemical Resistance:	Yes
Temperature Resistance:	75 ℃
Dropping Point:	75 ℃

Product Description

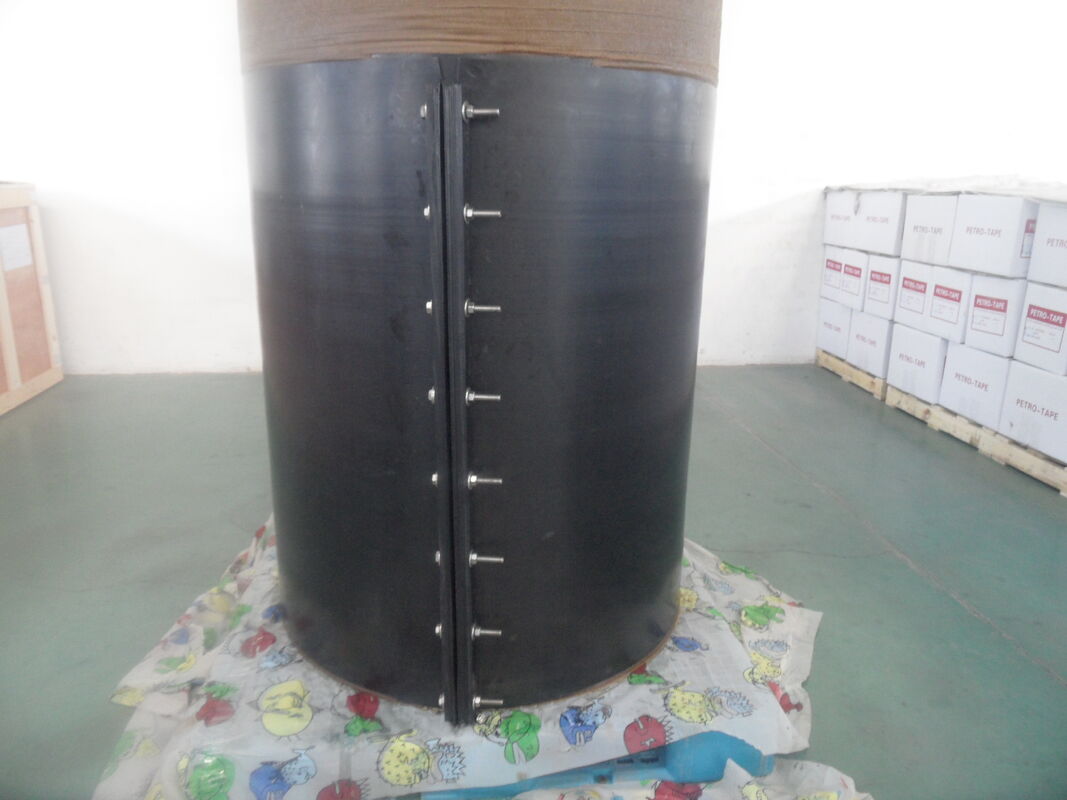

PileCoat 2000F HDPE Jacket

The 2000F HDPE Jackets supply mechanical protection for the corrosion barrier system. They are supplied as modular units and form the outer protective layer of the PileCoat system. Standard Module heights are 1.2m-1.9m. Pile diameter up to 2.4m can be accommodated. Hydraulic equipment will be applied to install these jackets.

Product Overview

The Jackets are fabricated from high-density polyethylene sheeting with a closure system. The jackets can resist to UV radiation excellently. The following fixings are used when installing the jackets.

M12 * 120 Hexagon Head bolt A4 SS316.
M12 Self Locking Nylon Insert Regular type A4
M12 * 35mm Dia Penny Washer A4

Key Features

PileCoat 2000F system is used in marine situations, such as the protection of structural steel work in the immersed and splash and tide zones.

PileCoat 2000F HDPE Jacket for PileCoat Series – Splash and Tide Zone Protection 0

PileCoat 2000F HDPE Jacket for PileCoat Series – Splash and Tide Zone Protection 1

Applications

Our Petro-Tape CNPetro system offers reliable, cost-effective corrosion protection for various industrial applications:

Oil and gas pipelines
Water pipelines and distribution systems
Chemical processing plants
Power generation facilities
Marine and offshore platforms

Technical Specifications

Property	Test Method	Data
Breaking Strength	ASTM D1000	200 N/50mm minimum
Elongation at Break	ASTM D1000	1000% average
Breakdown Voltage (55% overlap)		30kV minimum
Resistance to Cathodic Disbonding	ASTM G8 - 30 days	<500mm²
Resistance to Acids, Alkalis and Salts		Excellent
Fire Resistance - Surface spread of flame	BS 476 : Part 7:1971	Class 2
Temperature Range for Application		5°C to 55°C
Temperature Range for Service		-20°C to 85°C
Roll Length		10 metres minimum
Thickness	ASTM D1000	2.2mm average
Weight		3.5 kg/m² average

Product System & Compliance

Our complete Petro-Tape CNPetro system includes petrolatum mastic, petrolatum paste, petrolatum tape, and outer wrapping tape. The system meets AWWA C 217 standards and is manufactured under ISO 9001:2015, ISO 45001:2018 & ISO 14001:2015 certified quality management systems.

Packaging & Shipping

Each roll is individually wrapped in protective plastic film and packed in labeled cardboard boxes. Standard packaging includes 18 square meters per box, with palletized shipping for secure transportation.

Ordering Information

Minimum Order: 1 roll

Price: $5 per roll

Delivery: 7-14 days

Daily Production Capacity: 2,000 rolls
