3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies

Name: 3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies
Brand: TIANJIN CNPETRO HITECH CO.,LTD
SKU: CNPHDD
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNPetro

Certification: ISO

Model Number: CNPHDD

Payment & Shipping Terms

Minimum Order Quantity: 500 Rolls

Price: USD 20-50

Packaging Details: 300*300*320mm

Delivery Time: 8 work days

Payment Terms: L/C, T/T

Supply Ability: 5000 sets/week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3LPP Heat Shrink Wrap Around Sleeve, Heat Shrink Wrap Around Sleeve, Heat Shrink Wraparound Sleeves


Adhesion To Steel:	≥200N/cm	Color:	Black
Adhesive:	High Shear Strength Polypropylene Adhesive	Usage:	Corrosion Protection For Pipes
Key Point:	3LPP	Material:	Radiation Cross-linked, High Density Polypropylene.
Application Method:	Hand Or Machine	Pipe Type:	Polypropylene Coating
Chemical Resistance:	Yes	Thickness:	3.0mm
Width:	450mm	Temperature Resistance:	Up To140°C
Impact Resistance:	≥15J

Adhesion To Steel:	≥200N/cm
Color:	Black
Adhesive:	High Shear Strength Polypropylene Adhesive
Usage:	Corrosion Protection For Pipes
Key Point:	3LPP
Material:	Radiation Cross-linked, High Density Polypropylene.
Application Method:	Hand Or Machine
Pipe Type:	Polypropylene Coating
Chemical Resistance:	Yes
Thickness:	3.0mm
Width:	450mm
Temperature Resistance:	Up To140°C
Impact Resistance:	≥15J

Product Description

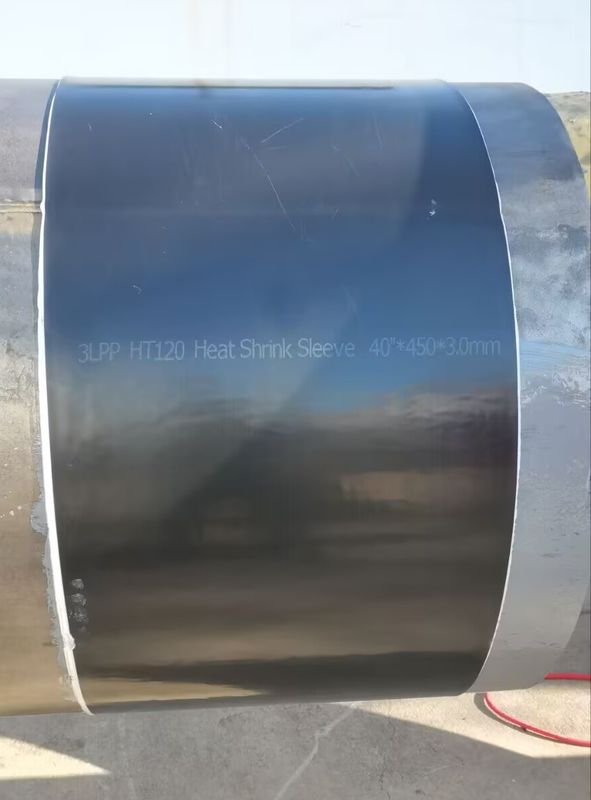

CNP 3LPP system is a wrap-around heat shrink sleeve

CNP 3LPP system is a wrap-around heat shrink sleeve which replicates the structure and the performance of factory applied three-layer PP coatings. It is polypropylene based heat shrink sleeve ,operating temperature up to 110°C-140°C.

Construction

First layer: Liquid epoxy, solvent-free two-component.

Second layer: High shear strength polypropylene adhesive layer.

Third layer: Radiation cross-linked, high density polypropylene.

Features & Benefits

● CNP 3LPP allows 3 layer PP coatings have a virtually monolithic coating.

●Cross-linked PP backing made sleeve suited for higher stress conditions caused both by elevated temperatures and by soils with contraction between wet-dry cycles.

● High performance PP adhesive provides excellent resistance to Cathodic Disbondment to against abrasion and chemical cracking at elevated temperature.

Product properties

Radiation cross-link PE Backing
Tensile strength	ASTM D 638	28MPa
Elongation	ASTM D 638	480%
Hardness, Shore D	ASTM D 2240	62
Dielectric strength at 23°C	ASTMD 149	33KV/mm
Hot Melt Adhesive

3LPP Heat Shrink Wrap Around Sleeve For Girth Weld Protection Of PP Pipelies 0
